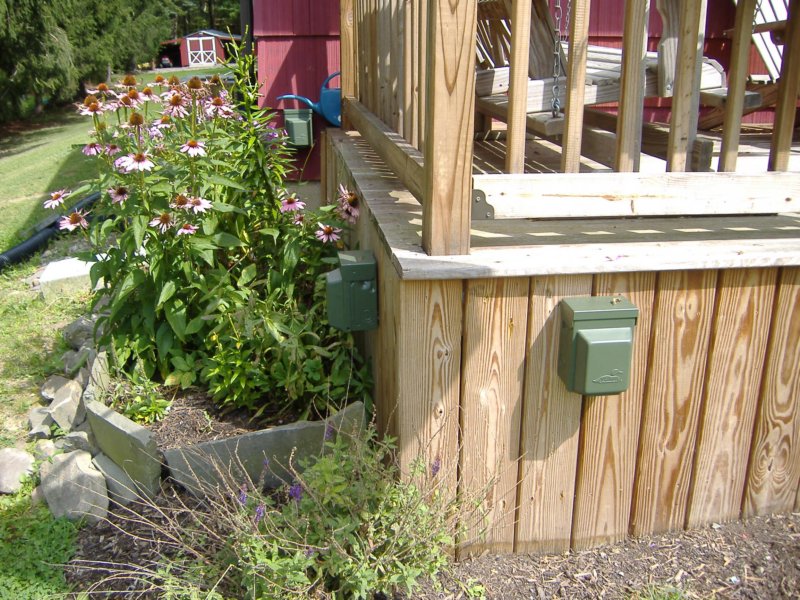

There are three NEMA 3R enclosures in this picture, each with a set of GFCI outlets. The front two enclosures are fed with 14AWG cable and limited to 15A per circuit. The rear enclosure(mounted on the house) is fed with 12AWG cable and capable of a full 20A per cicuit. Yes, there are 6 individual circuit in this picture.
